GLASS FILTER REACTORS AND PRESSURE REACTORS 35PSI JACKETED FOR FILTRATION ACE

Rugged, heavy wall reactor with 60mm, 100mm, or 150mm Duran® style top flange with O‑Ring groove at top, for connection to 6527, 6528, or 6529 heads, with 6517 quick-release clamp. Bottom has an Ace‑Thred (internal glass thread) for installing 5838-83 (#50) or 5857-86 (#80) bottom adapter with filter support and drain valve. Head has three 24/40 joints on 60mm size; four 24/40 joints on 100mm and 150mm sizes. Major Design Features
– 100mL to 6000mL standard
– Unjacketed or Jacketed
-All inert materials
-Reactions at ambient or pressure conditions
-Filtering by vacuum and/or pressure
-Removable/changeable filters, poly screen or glass, wide choice of porosities
-Mechanical agitation
-Inert bottom drain valve
-Easy assembly/disassembly for cleaning

Category:

Description

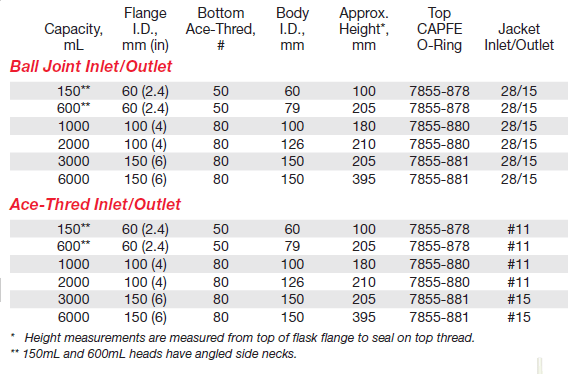

FILTER REACTORS JACKETED CATALOG
